Below is a comprehensive list of my De Dion-Bouton spares. Unless otherwise noted the item is available and can be shipped worldwide. Additional shipping charges may be applicable unless otherwise stated in the description below.

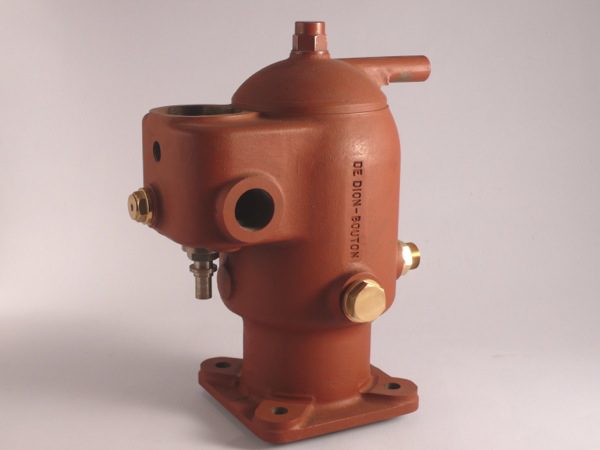

8 hp Cylinder Block for 1904
100mm bore x 120mm stroke supplied fully machined casting ready to fit with water outlet and blanking ports and with valve guide in two coats of primer.
Machine castings are all sold but available as a rough casting
£850

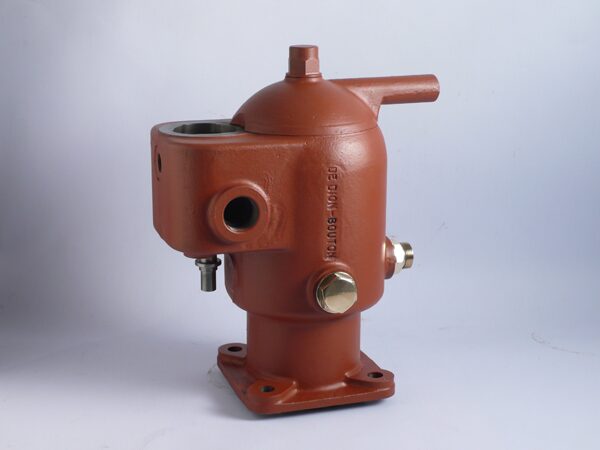

6 hp Cylinder Block for 1904
90mm bore x 110mm stroke supplied fully machined casting ready to fit with water outlet and blanking ports and with valve guide in two coats of primer
£2750

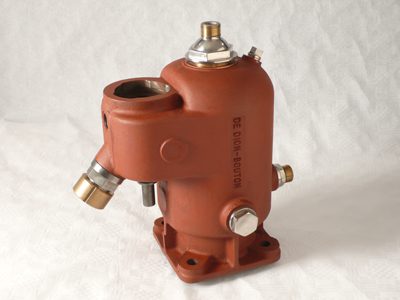

4.5 hp Cylinder Head for 1900
84mm bore x 90mm stroke supplied fully machined casting ready to fit with water outlet and blanking ports and with valve guide and exhaust outlet with two coats of primer.
5 Machined Castings
£2750

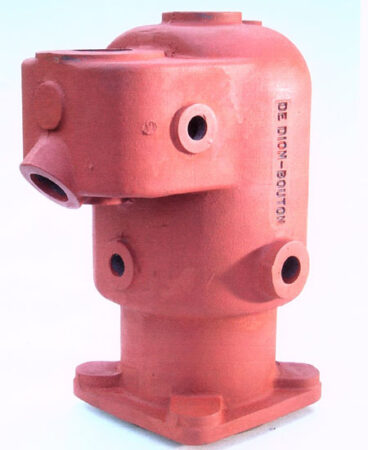

8 hp Cylinder block for 1902-03
100mm bore x 110 stroke sold as unmachined casting only.
£780.00

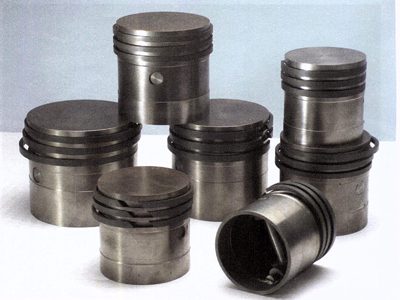

Cast Iron Pistons 1898 - 1904
All supplied with piston rings, gudgeon pin and security screws. Also supplied with .020 thou oversize
6hp, 10 hp and 12 hp (price on application)
8 hp
4 ½ hp Vis a Vis
3 ½ hp Vis a Vis
2 ¾ hp Tricycle 74mm
2 ¼ hp Tricycle 70mm
1 ¾ hp Tricycle 66mm
£POA

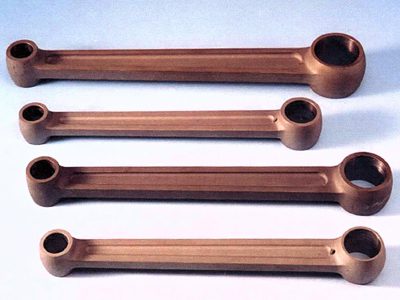

Connecting Rods
No bronze bearings supplied
8 hp 274 centres - £400.00
6 hp 248 centres - £375.00
4 ½ hp 220 centres - £330.00
3 ½ hp 215 centres - £310.00

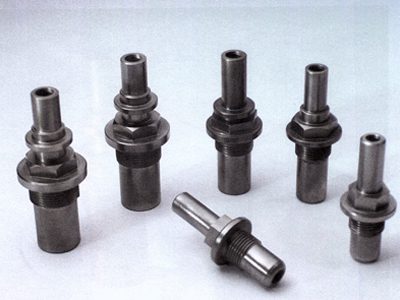

Cast Iron value guides
10 hp
8 hp
6 hp
4 ½ hp
3 ½ hp
2 ¾ hp
2 ¼ hp
1 ¾ hp
£118

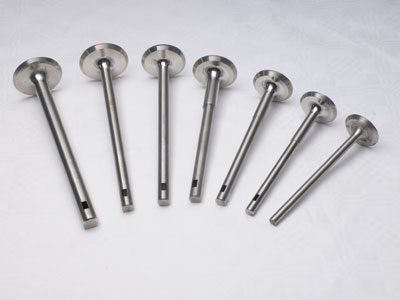

Large exhaust values
10 hp - 42mm x 12mm x 163mm
8 hp - 42mm x 9mm x 158mm
6 hp - 38mm x 9mm x 152mm
4 ½ hp - 38mm x 11/9mm x 135mm
3 ½ hp - 34mm x 9/8mm x 129mm
2 ¾ hp - 32mm x 8/7mm x 120mm
2 ¼ hp - 30mm x 6mm x 112mm
1 ¾ hp - 30mm x 6mm x 112mm
£112

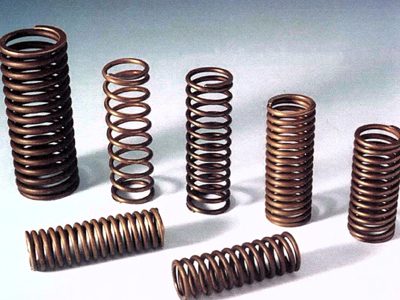

Exhaust Valve Springs
10 hp - £21
8 hp - £18
6 hp - £17
4 ½ hp - £16
3 ½ hp - £16
2 ¾ hp - £14
2 ¼ hp - £14
1 ¾ hp - £14

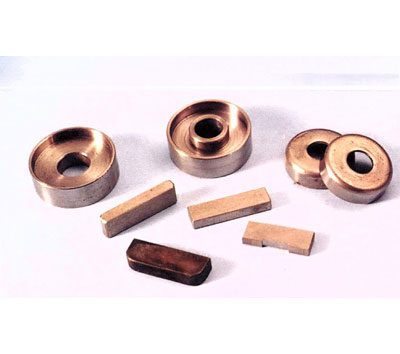

Exhaust Valve Spring Holders & Cotter Pins
10 hp - £24
8 hp - £18
6 hp - £18
4 ½ hp - £18
3 ½ hp - £16
2 ¾ hp - £12
2 ¼ hp - £8
1 ¾ hp - £8

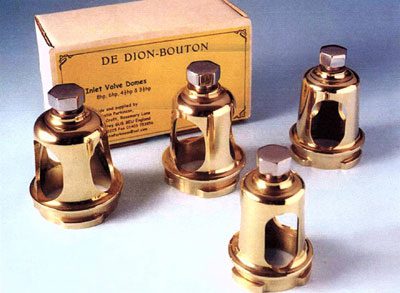

Bronze Inlet Dome + Steel Screw
10 hp - £315
8 hp - TBA
6 hp - £315
4 ½ hp - TBA
3 ½ hp - TBA
2 ¾ hp - TBA
2 ¼ hp - TBA
1 ¾ hp - TBA

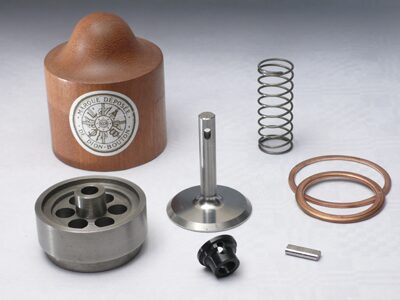

Automatic Inlet Valves
All supplied with gaskets in fitted wooden cases. The 10 hp to 4.5hp valves are now much stronger with a modified spring holder and new cotter pin arrangement.
10 hp - 42mm
8 hp - 42mm
6 hp - 38mm
4 ½ hp 38mm
3 ½ hp - 34mm
2 ¾ hp 32mm
2 ¼ hp - 30m
1 ¾ hp 30mm
1 ¾ hp - 30mm 1898
1 ¾ hp screw
£280

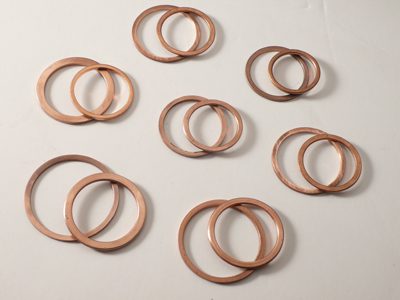

Automatic Inlet Valve Gasket Sets
10 hp - 42mm
8 hp - 42mm
6 hp - 38mm
4 ½ hp 38mm
3 ½ hp - 34mm
2 ¾ hp 32mm
2 ¼ hp - 30m
1 ¾ hp 30mm
1 ¾ hp - 30mm 1898
1 ¾ hp screw
£9 - £12

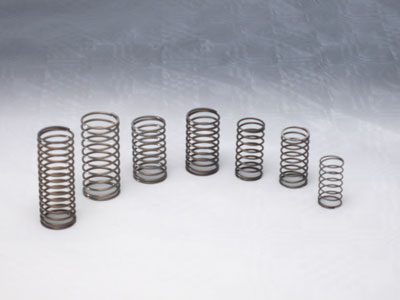

Automatic Inlet Valve Springs
10hp - 8hp - 6hp - 4.5hp
NB: These new Type 2 Valves need the lighter springs
10 hp - £12
8 hp - £12
6 hp - £12
4.5 hp - £12
3.5 hp - £10
2.75 hp - £10
2.25 hp - £9
1.75 hp - £9

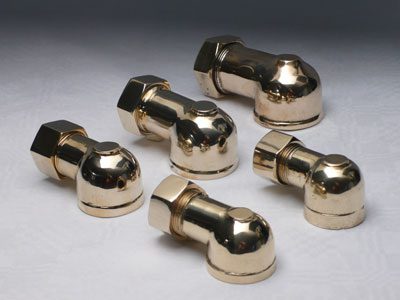

Bronze Inlet Valve Elbows
10 hp Two left
8 hp Two left
6 hp One left
4 ½ hp One left
3 ½ hp
2 ¾ hp one left
2 ¼ hp
1 ¾ hp
£128 - £180

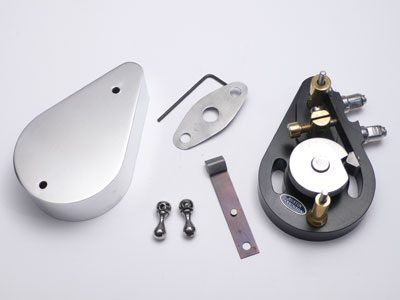

Contact Breakers Type 1: 1898-02 Models
Complete with fixing blade, spare timing blade and timing cam and fittings.
Available with left or right hand terminals.
10mm shaft and 12mm shaft sizes available
Tricycle engine cams turn anti-clockwise the rest turn clockwise
£650

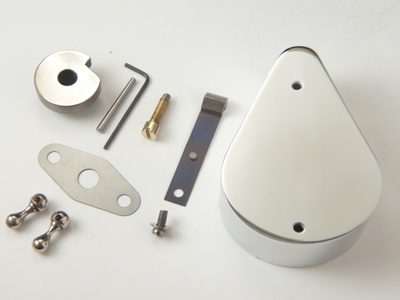

Type 1 Contact breaker 1898 - 1902 Spares
Timing cam with fittings (10mm shaft) - £78
12mm cam also available
Timing Blade with hammer and point - £48
Brass screw with tungsten point - £42
Aluminium Cover polished - £102
Pair of toggles in nickel - £46

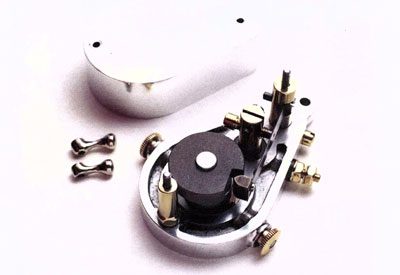

Contact Breakers Type 2: 1902-03 Models
Supplied with timing cam + fittings including spare timing blade, 15mm depth and 36mm spigot. Shaft size 14mm
£720
Type 2 Contact Breakers Parts Available
Timing cam with fittings (14mm shaft) - £78
Timing Blade with hammer and point - £48
Brass screw with tungsten point - £42
Aluminium Cover polished - £110
Pair of toggles in nickel - £46

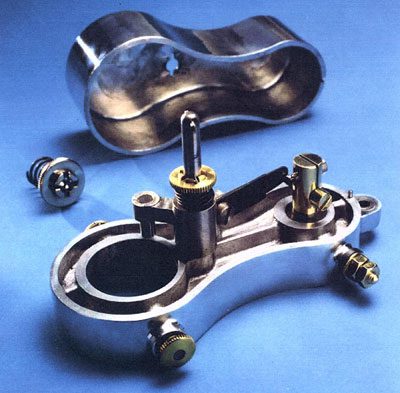

Type 3 Contact Breaker 1904
Supplied with timing cam and fittings and with spare timing blade, spigot 36mm, 25mm depth, 14mm shaft size
£875

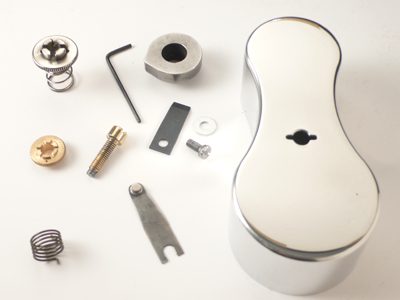

Type 3 Contact Breaker spares
| Timing cam with fittings | £78 | |
| Spring steel contact blade | £33 | |
| Brass screw with point | £42 | |
| Tension spring for adjuster | £10 | |
| Brass adjuster wheel + pin | £30 | |
| Aluminium cover polished | £140 | |
| Cover locking and spring | £38 |
Type W Contact Breaker for Twin Cylinder
10 hp - 1904 Supplied with double timing cam and fittings and two spare blades. Shaft size 14mm and spigot size 36mm
No longer available

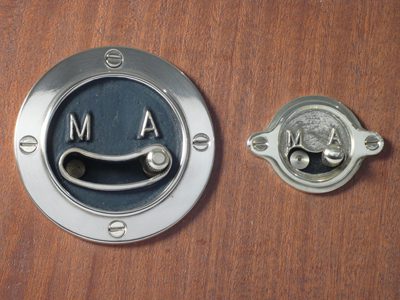

Ignition Switches
For low voltage use only
Small switch - £92
Large switch - £132

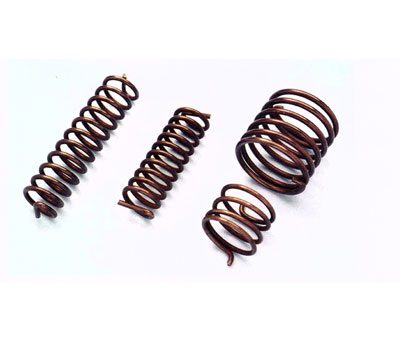

Water Pump Safety Springs
Long single cylinder spring - 108mm length - £16
Short single cylinder spring - 84mm length - £16
Vis a vis short spring 55mm length (Not shown in picture) - £14
Twin cylinder short spring - 50mm diameter - £19
Tension packing spring - 36mm diameter - £14

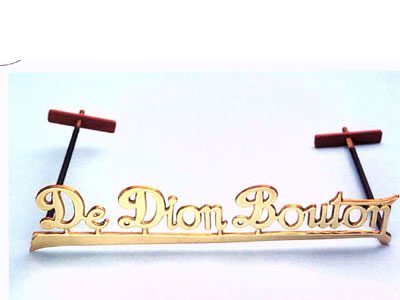

Radiator Script Badge in Brass
Supplied with all fittings + Also suppled in Nickel - 273mm Long
Out of stock

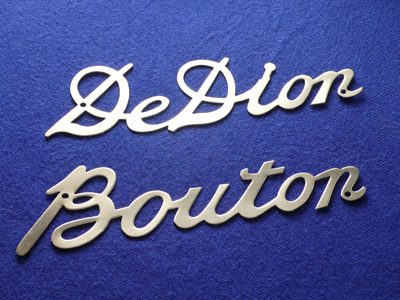

Radiator Script Badge Set
Supplied with all fittings
Suppled in Brass & Nickel plated - 185mm Long
Brass - £74
Nickel - £84

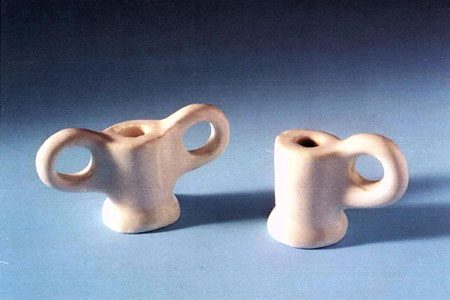

China Insulators for single and twin cylinder engines
Single cylinder # Twin cylinder insulators Originals still available

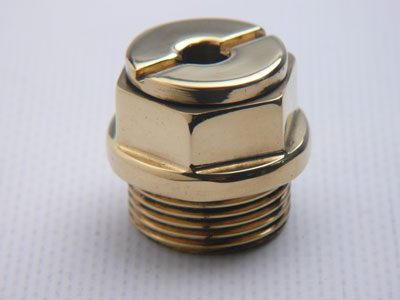

Crankcase Breather for Engines
Brass Breathers for engine timing cases with ball bearing fitted
10hp
8hp
6hp
£43

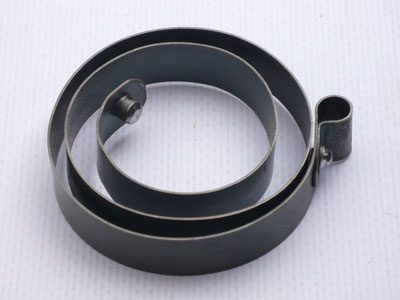

Tension Return Spring for Valve Lifter
These springs keep the tension on the valve lifter
OUT OF STOCK
Carburetta Float
One size fits all from 2 3/4 to 8hp (out of stock)
OUT OF STOCK

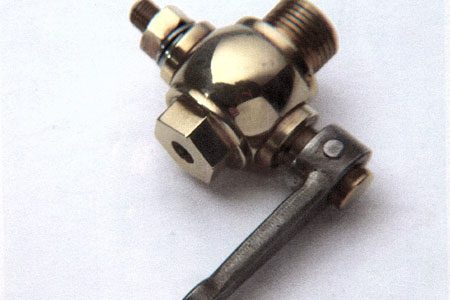

Brass Sump Oil Drain Tap
For 10hp - 8hp - 6hp engines
£145

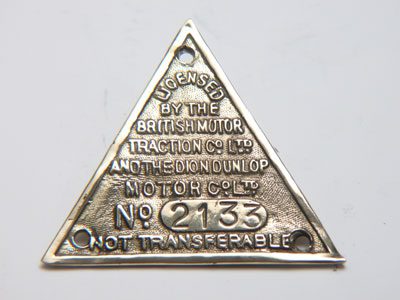

Small Triangle Brass Plate
For the License by The British Traction Co Ltd and the The Dion Dunlop Motor Co Ltd, No 2133
£38

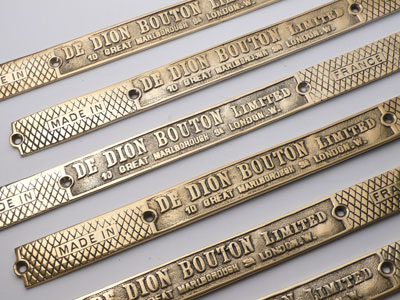

Polished Brass Side Plates
Marked Made in France. Supplied by 10, Great Marlborough Street, London W
410mm X 30MM
£75.00 (only 1 remaining)

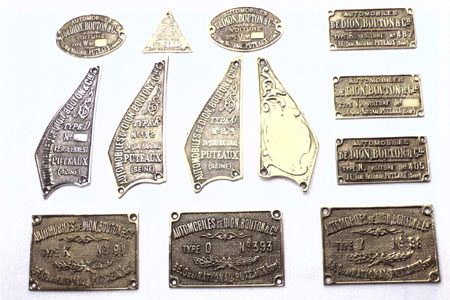

Brass Body Plates
For Type D, E, G, O, K, Y, V, R, N, Q, W
All supplied with blank chassis numbers for you to stamp your own numbers on
£38 - £48

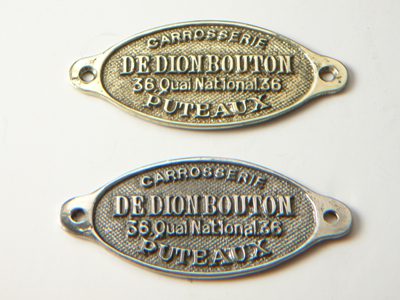

Carrosserie Brass & Nickel Body Plates
Nickel plated - £32 Brass - £25

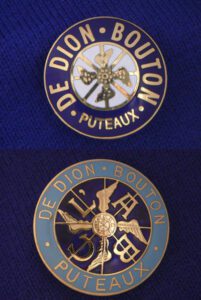

Lapel Badges
2 Sizes:
27mm / 31mm diameter
£4.00 each

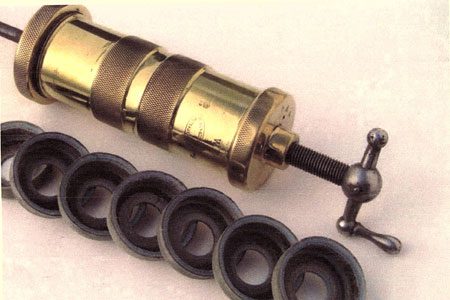

Grease Gun Leather Cup Washers
Set of replacement leather washers including copper rivets
£40.50
Dashboard Oiler Replacement Leather Cup
Set of replacement Leather washers including copper rivets
£42 per set
Marque Deposee - De Dion Bouton
Gold transfers for the rear of a tonneau door and can be cut away for mounting on side of body - 21cm Length - 10cm Roundel
£12
Marque Deposee - De Dion Bouton
Gold self-adhesive stickers for the side of a tonneau door and can be cut away for mounting on side of body
21cm Length
10cm Roundel
OUT OF STOCK
Coil Box for Single Cylinder Coil
Fitted with brass Marche - Arret switch and two brass supporting straps. With Nelmelior stamped on the front - 172mm x90mm x220mm
3 in stock
£395

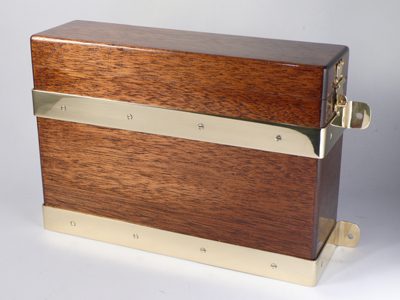

Handmade Mahogany Battery Box
Originally for fitting the DDB dry batteries in and they were fitted on the left hand side of the bulkhead. (with brass support bands and locking hinges)
330mm wide, 93mm and 234mm height
1 in stock
£425

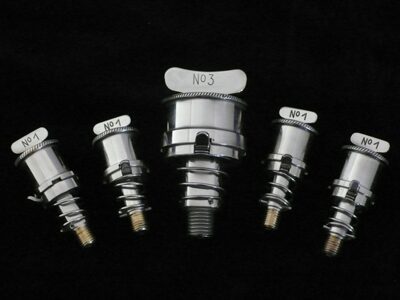

Albert Lefebvre Greasers
Supplied in nickel or polished brass
NO 1 - Small - £70
NO 2 - Medium - £75
NO 3 - Large - £80

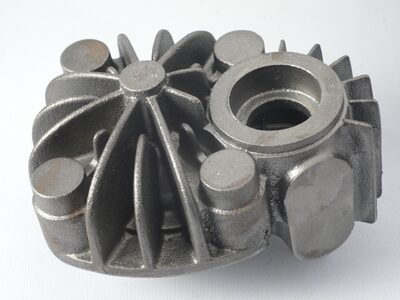

1899-1900 Tricycle Cylinder Head
2 ¼hp or 2 ¾hp cylinder heads for aircooled Tricycle engines supplied unmachined
2 ¼ hp - 70mm
2 ¾ hp - 74mm
£275
1898 Tricycle Cylinder Head
1.75hp for the screw in automatic valve (supplied unmachined)
£195

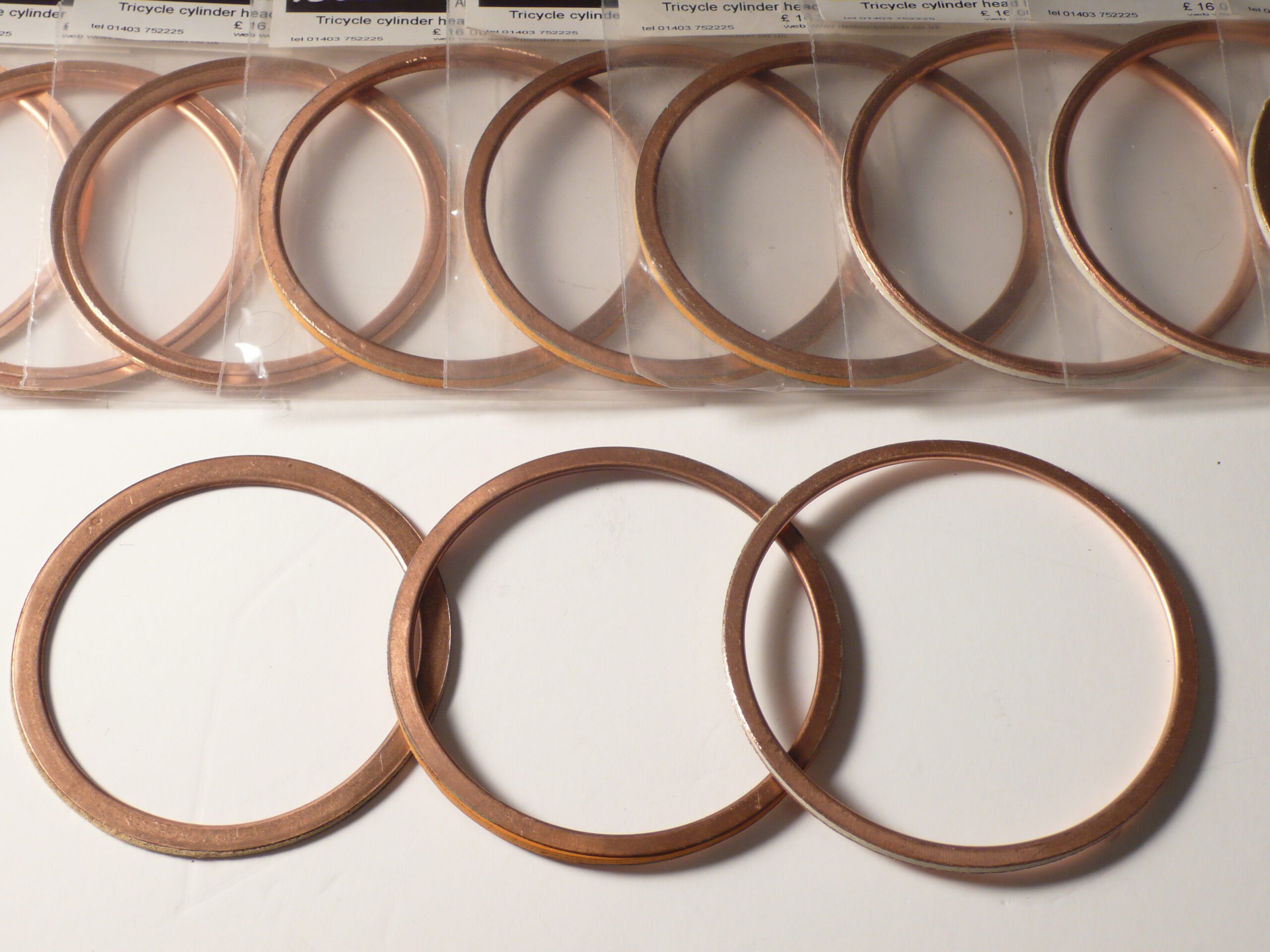

Tricycle Cylinder Head Gasket
2 ¾ hp
2 ¼ hp
1 ¾ hp
£26
Tricycle Badge for Surface Carburettor and Battery Box
Finished in dull Nickel Plate
Caburettor Badge - £110
Battery Box Badge - £48
Tricycle Battery Box
Made of steel with hinge and closing rod
(w/d/h) 313mm x 70mm x 196mm
SOLD OUT
Tricycle Aluminium Gear Housing
Supplied in one piece to be machined and polished - £149.
I have some polished Gear housings in stock (please ask for price)
Tricycle Bronze Gear for 102 - 104 - 106 Teeth
Rough Casting Available. Earlier gear pattern
Casting weight is 5.5 kilos
£118 (only 1 remaining)
